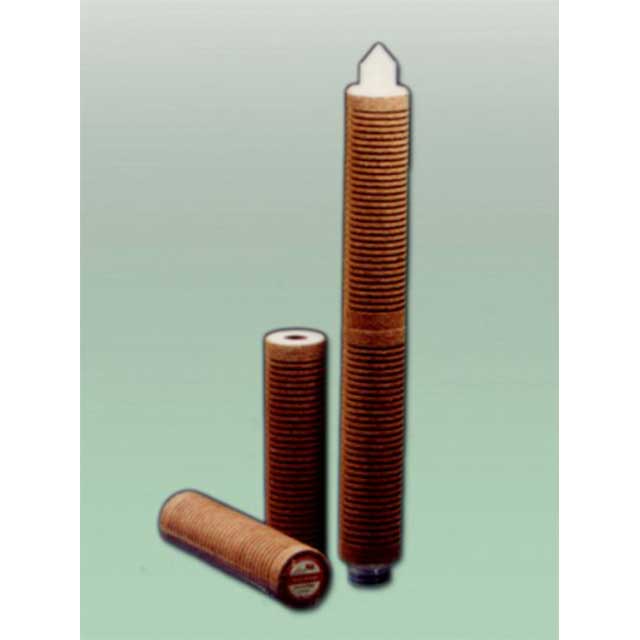

Betapure™ BK-Z8 Series Filter Cartridge is a truly absolute-rated, rigid, or non-compressible, resin-bonded filter cartridge. Our rigid, resin-bonded structure prevents by-pass and unloading at high differential pressure. This product is available in lengths ranging from 9 ¾” to 40″ in both standard and high temperature options.
We continue our tradition of innovative, cost-effective solutions to challenging industrial filtration applications with the Betapure™ BK-Z8 Series Filter Cartridge. Our absolute-rated Betapure™ BK-Z8 series filters retain contaminants ranging from 5 to 70 microns to provide consistent production yields at the specified micron rating. Part of Betapure BK-Z8 series filter cartridge’s efficiency is due to its rigid, resin-bonded structure, which helps retain contaminants in dynamic processes, such as high differential pressure, with no by-pass or unloading. We construct each graded-porosity filter cartridge using acrylic fibers, cellulose fibers and a tough chemically resistant thermosetting resin. Our manufacturing process produces more fibers towards the center core region, creating a graded-porosity structure, and the thermosetting resin “bonds” the fibers into a permanent, rigid matrix.
In the Groove
We also incorporate an optimized groove pattern in Betapure BK-Z8 series filter cartridges to increase its surface area. The grooved surface prevents premature blinding of the outer surface by large particles and allows full utilization of the depth structure. Maximum surface area with a true graded-porosity structure means that Betapure BK-Z8 series filter cartridge can provide long service.
Polypropylene or polyester end modifications can be retrofitted to any industrial housing and are usable in existing filter housings. The rigid design needs no plastic or metal core. The structure also contributes to consistent throughput quality throughout the filter’s life. Our control process results in consistent filter cartridges with defined absolute ratings time after time after time.
We offer the Beta-Klean Z8 series filter cartridge in a standard version that provides consistent performance to 250°F (121°C), as well as a high temperature option that extends performance to 300°F (149°C).
Applications
Betapure BK-Z8 provides consistent reproducible filtration performance and long life in a wide variety of industrial processing applications. Betapure BK-Z8 is particularly well suited for high viscosity fluids, high temperature processes and maximum differential pressures to 70 psid (4.8 bar) @ 68°F (20°C).
Petroleum Products
Gasoline
Kerosene
Lube
Oil
Fuel oil
Wax
Chemical/petrochemical
Acids
Bases
Organic solvents
Catalysts
Monomers
Polymers
Glycols
Water
Process water
Produced water
Boiler feed
Demineralized feed
Pre-reverse osmosis system
Waste water
General industrial
Paint
Varnish
Lacquer
Inks
Coatings
Emulsions
Magnetic media
Resins
Detergents
Adhesives
Brines
Aqueous salt solutions
Absolute rated filter cartridge, available in grades from 5 to 70 microns
Rigid, resin-bonded structure prevents by-pass or unloading at high differential pressure
Grooved surface with true graded-porosity internal structure provides long life
300°F high temperature option to meet the requirements of a wide-range of applications
