3m

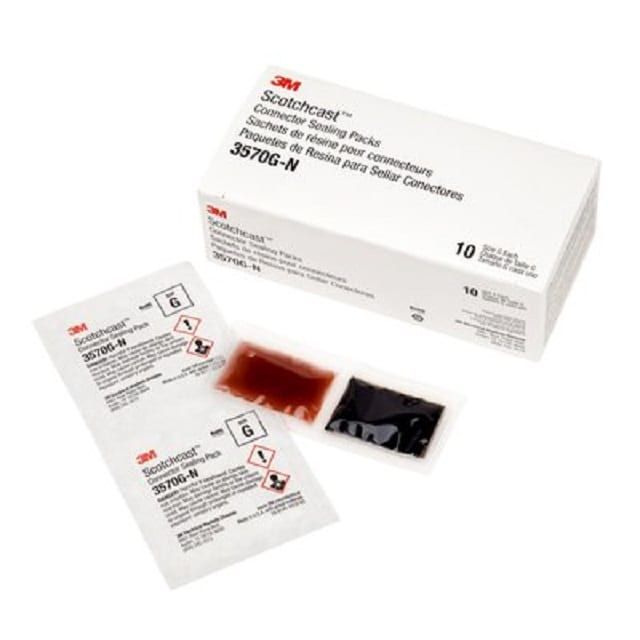

3M Scotchcast Connector Sealing Pack

  • 60 Shore D hardness
  • Has 8 to 12-minute gel time at 73 degrees F (23 degrees C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • Comes in black color
  • Includes thermo-setting resin
  • Withstands temperatures of 250 degrees F (121 degrees C)
  • Elongates 57% longer than its original size for easy insulation or wrapping
  • Insulates electrical spring connectors
  • Stable at elevated temperatures up to 250 degrees F (121 degrees C)
  • RoHS 2011/65/EU Compliant
Brand

3M
Add to Wishlist
Compare
Categories: ,
Description

Specifications

Application
Cable Connection
Cable Accessory Products
Electrical Resins
Cable Shielding
Armored, Non-Armored Shielded
Cable Type
EPR, Solid Dielectric Cables, XLP, XLPE
Color
Black, Black
Conductor Sizes for 15 kV
1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
Conductor Sizes for 5_8 kV
250 kcmil, 3/0 AWG, 4/0 AWG
Connection Type
Wire
Dielectric Strength
435 Millivolt
Dielectric Strength (V/mil)
435 V/mil
Elongation
57 %
Flame Retardant
Yes
Hardness
60 Shore D
Indoor/Outdoor
Both
Insulation Outside Diameter Range
0.64 – 1.01 Inch
Insulation Outside Diameter Range (Metric)
16.3 – 25.7 mm
Maximum Wire Gauge
95mm²
Minimum Wire Gauge
35mm²
Number of Conductors
3
Product Type
Accessory
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
*Important RoHS information
Splice Type
Connector
Tensile Strength (Imperial)
1779 Pound-Force Per Square Inch
Typical Splice Length
52.0 in
Typical Splice Length (Metric)
1320 mm
Voltage
0 – 600 kV
Voltage Application
Medium Voltage
Wire Connector Type
Wire Connector Tools

Details

  • 60 Shore D hardness
  • Has 8 to 12-minute gel time at 73 degrees F (23 degrees C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • Comes in black color
  • Includes thermo-setting resin
  • Withstands temperatures of 250 degrees F (121 degrees C)
  • Elongates 57% longer than its original size for easy insulation or wrapping
  • Insulates electrical spring connectors
  • Stable at elevated temperatures up to 250 degrees F (121 degrees C)
  • RoHS 2011/65/EU Compliant
