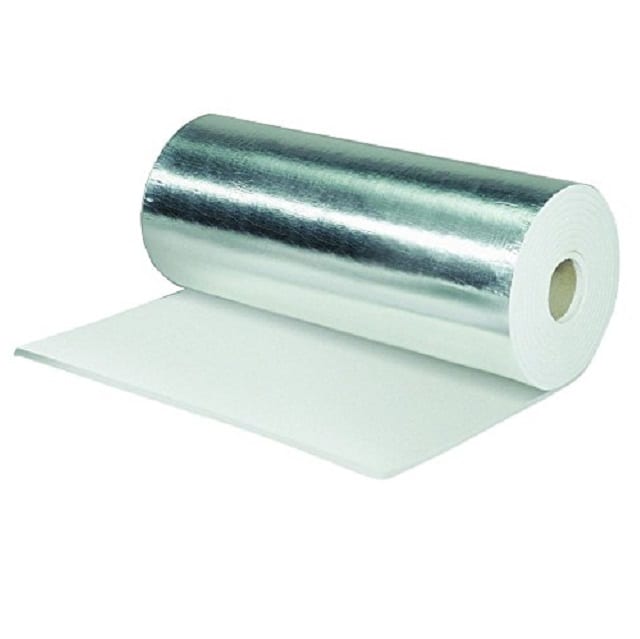

3M™ Interam™ Endothermic Mat opens up new opportunities in building design in allowing engineers to fulfill the requirement of the different fire exposure; cellulosic,
hydrocarbon and jet fire while enhancing design flexibility. Using advanced endothermic materials, the 3M™ Interam™ Endothermic Mat helps prevent the transfer of heat from the expose side to the protected items via a chemical reaction, which absorbs the heat energy. Its space-saving, conformable construction offers easy installation in a broad range of applications, providing flexible, full envelope protection in critical areas of all types.
Warehouse
Our modern warehouse at Patparganj, New Delhi provides us the advantage to cater to the whole of India.
Shipping and Delivery
Our dedicated distribution team manages all the shipping/deliveries on a FIFO basis. If you have a special request or are in urgent need of a part, they would be happy to express ship it or personally hand deliver it to your location*. We understand the importance of having an up & running factory or production – We are Always happy to help .
Related products
Fire Barrier Self-Locking Pillows
Specifications
|
Brand |
3M™ |
|
Color |
Red |
|
Color Family |
Red |
|
Consumer Label |
No |
|
Fire Rating |
3 Hour |
|
Length |
9 Inch |
|
Length (Metric) |
229 mm |
|
Product Form |
Pillow |
|
Product Type |
Pillows |
|
Size |
Large, Medium, Small |
|
Smoke Seal |
Yes |
|
Thickness |
2 Inch, 3 Inch |
|
Thickness (Metric) |
51 mm, 76 mm |
|
Volatile Organic Compounds (VOCs) |
See Safety Data Sheet, Regulatory Data Sheet |
|
Water Tight |
No |
|
Width |
4 Inch, 6 Inch |
|
Width (Metric) |
102 mm, 152 mm |
3M™ Fire Barrier Composite Sheet CS-195+
- Ideal for fire-stopping blank openings and through-penetrations of multiple cables, pipe ducts and cable trays.
- Great substitude to firestop mortar in the wall
- No mixing or damming required
- Easy to install using common trade tools
- Easy to fasten, bolt punch or drill through and use self-tapping screws or anchor bolts
- Re-enterable
- Available in the following sizes: 40.64 x 71.12 cm........(bulk and boxed) 91.44 x 60.96 cm........(bulk and boxed) 91.44 x 91.44 cm........(bulk and boxed) 91.44 x 104.14 cm.......(bulk and boxed) 71.12 x 132.08 cm.......(bulk only)
- Provides up to a 4-hour fire rating
3M Fire Barrier IC 15WB+ Sealant
Affordable UL, general-purpose sealant approved up to 4-hours when used with plastic and metal pipes.
- Australian standard testing in accordance with AS1530.4
- International testing in accordance with EN 1366 and
- ASTM E814 (UL Listed)
- Provides up to 4-hours
- CPVC compatible
- Superior adhesion – bonds to concrete, metals, wood, plastic, and cable jacketing
- Intumescent – expands when heated to seal around items consumed by fire
3M Fire Barrier CP 25WB+ Sealant
Our most popular fire stop sealant approved up to 4-hours when used with most plastic and metal pipes.
- Australian standard testing in accordance with AS1530.4
- International testing in accordance with EN1366
- Provides up to 4-hours
- Superior adhesion – bonds to concrete, metals, wood,
plastic and cable jacketing - Intumescent – expands when heated to seal around items
consumed by fire
* Not approved for use with CPVC pipes
3M Fire Barrier Moldable Putty MP+ Sticks
Designed to firestop a wide variety of through-penetrations, including cable, conduit, insulated pipe, and metal pipe.
- Pliable – can form into almost any desired shape
- Will not dry out or crumble – can be sealed for reuse
- Available in 36 x 152 mm and 36 x 279 mm stick sizes
3M 425 Aluminium Foil Tape
Aluminum foil tape is a 5 mil nominal dead soft aluminum foil backing combined with a transparent acrylic adhesive designed to seal the cut edges of 3M Duct Wrap and Interim mats to complete the total encapsulation.
- 5-mil aluminum foil
- Acrylic adhesive
- Tensile strength: 30 lbs./in.
- width (525N/100 mm)
3M Fire Barrier Mortar
Lightweight, gypsum-based and endothermic fire stop that is ready for mixing with potable water.
- Up to 2-hour fire ratings per EN-1366-3
- Variable mix ratio permits self-leveling as well as trowelable application
consistencies including concrete floors with 100 mm minimum thickness - Excellent adhesion – bonds to concrete, metals, wood, plastic, and cable jacketing
- Re-enterable/repairable with common trade tools
- Acts as a heat sink, reducing the likelihood of combustible matter igniting on the
unexposed side of the assembly - Dry mix available in 18.9 litre (12.7 kg) pails and 19.9 kg bags
3M FireDam 150+ Sealant
Tested and approved for single metallic pipe penetrations and
construction joints.
- Water-based for easy installation, cleanup and disposal
- Endothermic fillers absorb heat and release chemically-bound water
- High-solids formula means no shrinkage
- Multi viscosity grade offers excellent caulking properties
- Available in limestone or red colour
- Excellent movement capabilities
- Limestone Red Low VOC
