Specifications
|
Application/Industry
|
Telephone
|
|
Brand
|
3M™
|
|
Color
|
Orange, Orange
|
|
Diameter
|
4 in
|
|
Diameter (Metric)
|
10.16 Centimeter
|
|
Height (Metric)
|
10.4 Centimeter
|
|
Marker Depth
|
6 feet (1.8m)
|
|
Marker Dimension (inch)
|
4-inch Diameter
|
|
Marker Finding Capability
|
Yes
|
|
Marker Function
|
Passive
|
|
Marker Type
|
Ball
|
|
Number of Frequencies
|
N/A
|
|
Range
|
0 to 5 Linear Foot
|
|
RoHS 2011/65/EU Compliant
|
Undetermined
|
|
RoHS EU Comments
|
Contact 3M for information
*Important RoH information |
|
Solution for
|
Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul
|
|
Transmitter Output
|
N/A
|
Details
- 5-ft detection range
- Self-levelling design for precise and horizontal positioning
- Offers easy marking of buried power lines
- Passive antenna encased in green water-resistant polyethene shell
- Withstands a temperature range of -4 to 122 degrees F (-20 to 50 degrees C)
- Works without any external power source

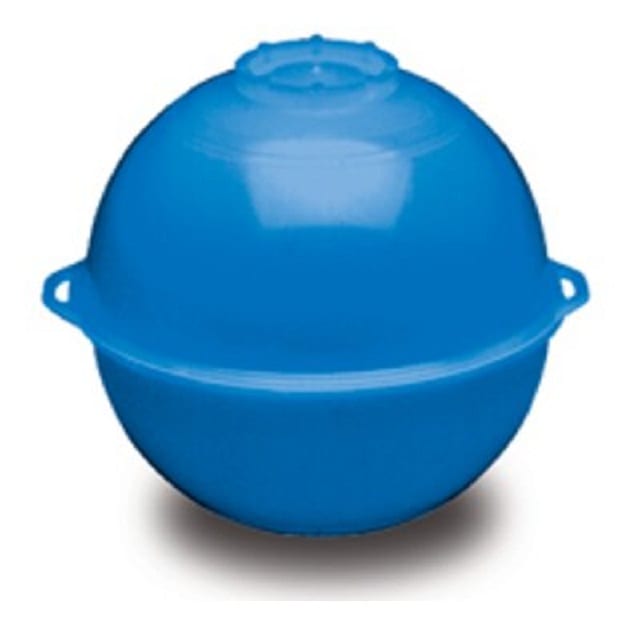

3M™ EMS Extended Range Ball Marker is specially designed for locating flush-mounted facilities that are covered by backfill. It is affixed to the underside of non-metallic lids or covers over flush-mounted facilities. This self aligns marker offers positive identification of facilities.
3M™ EMS Extended Range Ball Marker provides an effective way of marking underground facility lines. It withstands a temperature range of 4 to 122 degrees F ( 20 to 50 degrees C). This passive underground marker with a water-resistant polyethene shell does not react with any chemicals or minerals. The easy to use marker system has an extended detection range of 5 ft. This ball marker effectively operates without the need for any external power source.
